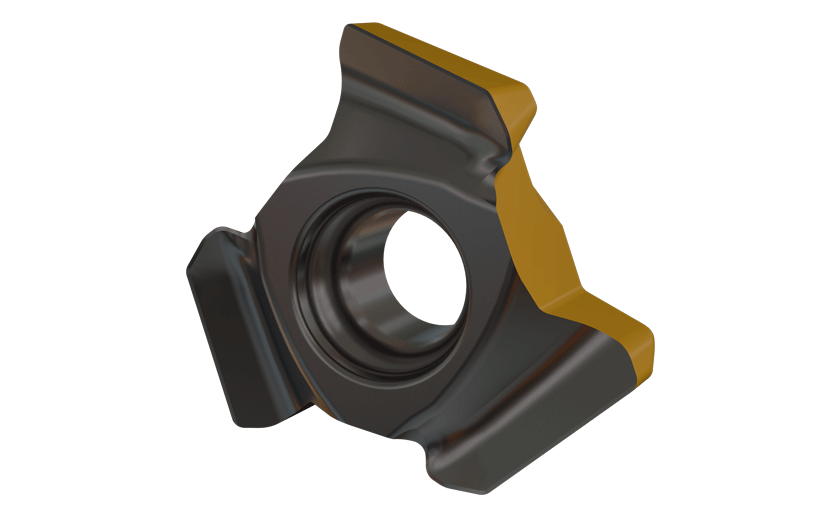

TR45 TXMT 1004 IC830-Single-sided inserts with three cutting edges for 45° chamfering and face milling.

Dostępność: duża ilość

Cena brutto: 95,03 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

95.03

Cena netto: 77,26 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 73,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3320886

TR45 TXMT 1004 IC830

Podstawowe informacje
FamilyName	TR45 TXMT
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3320886
ProductName	TR45 TXMT 1004 IC830
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Single-sided inserts with three cutting edges for 45° chamfering and face milling.
FamilyShortDesc	Single-Sided Inserts with Three Cutting Edges for 45° Chamfering and Face Milling
Link	https://www.Iscar.com/ecat/e.asp?cat=3320886
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Rampdown \| Slanted Shoulder & Chamfer \|
APP1Name	Facing
APP2Name	Rampdown
APP3Name	Slanted Shoulder & Chamfer
ItemRemark
Coating	AlTiN+TiN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0042
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3320886
Grade	IC830
Corner Radius (RE)	0.4 mm
Cutting Direction (HAND)	Right Hand
Depth of Cut Maximum (APMX)	3 mm
Inscribed Circle Diameter (IC)	7.3 mm
Insert Thickness (S)	3.9 mm
Maximum Feed per Tooth (fz(max))	0.4 mm/tooth
Minimum Feed per Tooth (fz(min))	0.2 mm/tooth
