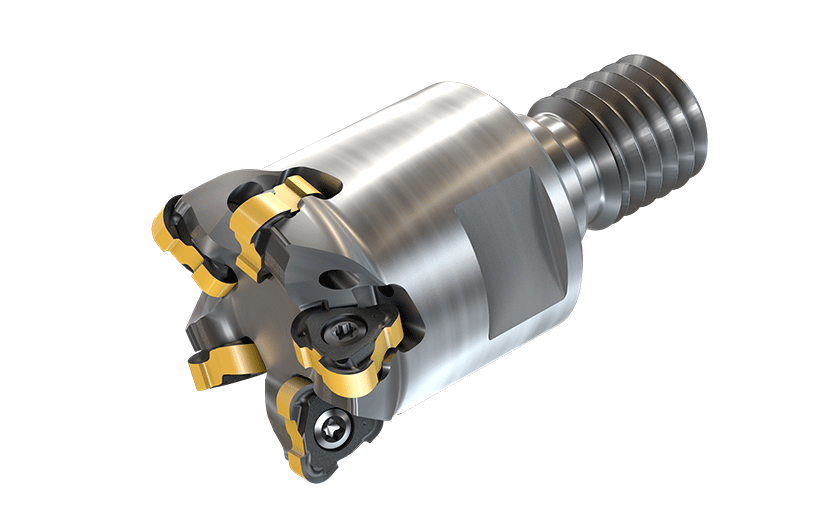

TR6 ER D35/1.38-6-M16-07-Multifunction endmills with FLEXFIT threaded adaptation that carry four different insert geometries.
Dostępność:
duża ilość
Cena brutto:
2 355,81 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 915,29 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 629,70 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3320748
Opis
TR6 ER D35/1.38-6-M16-07
| Podstawowe informacje | |
|---|---|
| FamilyName | TR6 ER-M |
| ToolType | Tool |
| Unit | M |
| PackSize | 1 |
| product_code | ISC3320748 |
| ProductName | TR6 ER D35/1.38-6-M16-07 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23242106 |
| FamilyDesc | Multifunction endmills with FLEXFIT threaded adaptation that carry four different insert geometries. |
| FamilyShortDesc | Multifunction Endmills with FLEXFIT Threaded Adaptation That Carry Four Different Insert Geometries |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3320748 |
| Remarks | Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on More Info When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Facing | Fast Feed Milling | Profiling | Shouldering | Slanted Shoulder & Chamfer | |
| APP1Name | Facing |
| APP2Name | Fast Feed Milling |
| APP3Name | Profiling |
| APP4Name | Shouldering |
| APP5Name | Slanted Shoulder & Chamfer |
| ItemRemark | |
| Point Shape | |
| Measurement Type | Metric |
| Thread Standard | |
| Package Weight | 0.2370 |
| Style | |
| MSDS | 07995 |
| LocalField1 | 21 |
| Body Material | Steel |
| ManufacturerNo | 3320748 |
| Body Half Taper Angle (BHTA) | 18 Degrees |
| Connection Code Machine Side (CCMS) | FLEXFIT |
| Connection Diameter Machine Side (DCONMS) | 29 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 33 mm |
| Cutting Diameter (DC/DCX) | 35 mm |
| Cutting Diameter Maximum (DCX) | 35 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 |
| Depth of Cut Maximum (APMX) | 1 mm |
| Drive Size (DRVS) | 25 mm |
| Functional Length (LF) | 34.64 mm |
| Master Insert Identification (MIID) | TR6 TNCU 070210 |
| Overall Length (OAL) | 59.7 mm |
