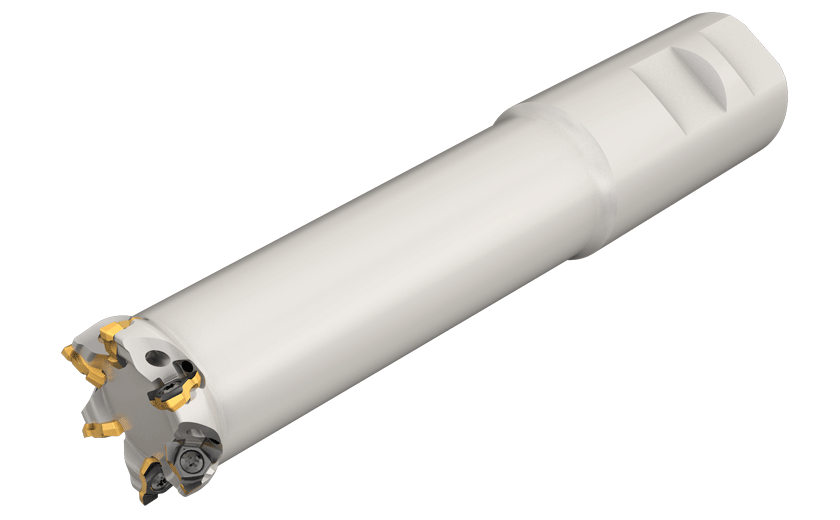

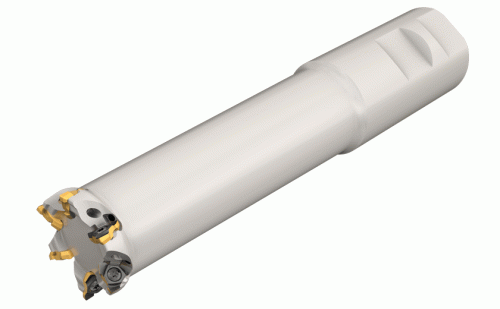

TR6 ERD1.00-5-3.0W1.00-07-Multifunction endmills that carry four different insert geometries.

Dostępność: duża ilość

Cena brutto: 1 265,49 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1265.49

Cena netto: 1 028,85 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 406,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3344287

TR6 ERD1.00-5-3.0W1.00-07

Podstawowe informacje
FamilyName	TR6 ER
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3344287
ProductName	TR6 ERD1.00-5-3.0W1.00-07
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Multifunction endmills that carry four different insert geometries.
FamilyShortDesc	Multifunction Endmills That Carry Four Different Insert Geometries
Link	https://www.Iscar.com/ecat/e.asp?cat=3344287
Remarks	Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Fast Feed Milling \| Profiling \| Shouldering \| Slanted Shoulder & Chamfer \|
APP1Name	Facing
APP2Name	Fast Feed Milling
APP3Name	Profiling
APP4Name	Shouldering
APP5Name	Slanted Shoulder & Chamfer
ItemRemark
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.9987
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3344287
Body Half Taper Angle (BHTA)	18 Degrees
Connection Code Machine Side (CCMS)	Weldon
Connection Diameter Machine Side (DCONMS)	1"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	0.921"
Cutting Diameter (DC/DCX)	1"
Cutting Diameter Maximum (DCX)	1"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	5
Depth of Cut Maximum (APMX)	0.039"
Functional Length (LF)	4.139"
Head Length (LH)	2.83"
Master Insert Identification (MIID)	TR6 TNCU 070210
Overall Length (OAL)	5.28"
Shank Type	Weldon
Usable Length (LU)	2.83"
