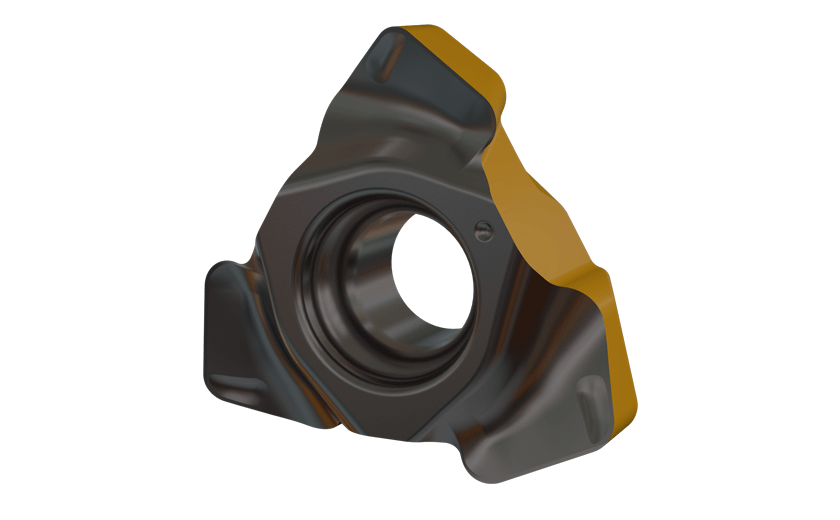

TRFF TXMT 0702 IC830-Single-sided insert with three cutting edges for high feed machining.

Dostępność: duża ilość

Cena brutto: 107,84 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

107.84

Cena netto: 87,67 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 82,56 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3320928

TRFF TXMT 0702 IC830

Podstawowe informacje
FamilyName	TRFF TXMT
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3320928
ProductName	TRFF TXMT 0702 IC830
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Single-sided insert with three cutting edges for high feed machining.
FamilyShortDesc	Single-Sided Insert with Three Cutting Edges for High Feed Machining
Link	https://www.Iscar.com/ecat/e.asp?cat=3320928
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Fast Feed Milling \| Helical Interpolation \| Profiling \| Rampdown \|
APP1Name	Facing
APP2Name	Fast Feed Milling
APP3Name	Helical Interpolation
APP4Name	Profiling
APP5Name	Rampdown
ItemRemark
Coating	AlTiN+TiN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0060
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3320928
Grade	IC830
Corner Radius (RE)	0.5 mm
Cutting Direction (HAND)	Right Hand
Depth of Cut Maximum (APMX)	0.6 mm
Inscribed Circle Diameter (IC)	5.3 mm
Insert Thickness (S)	2.4 mm
Maximum Feed per Tooth (fz(max))	0.8 mm/tooth
Minimum Feed per Tooth (fz(min))	0.5 mm/tooth
