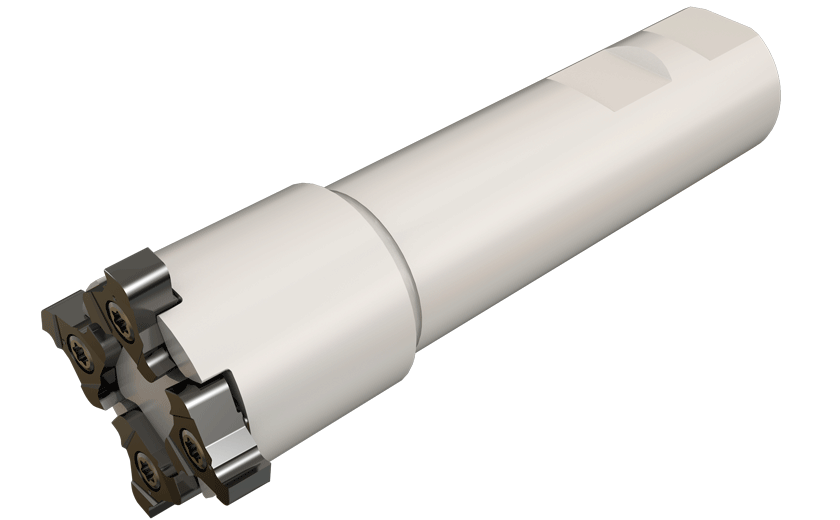

TRIB 32-1.000W 3Z-B-Slitting shanks carrying triple-edged precision ground inserts.

Dostępność: duża ilość

Cena brutto: 1 195,83 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1195.83

Cena netto: 972,22 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 328,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2302259

TRIB 32-1.000W 3Z-B

Podstawowe informacje
FamilyName	TRIB
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC2302259
ProductName	TRIB 32-1.000W 3Z-B
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Slitting shanks carrying triple-edged precision ground inserts.
FamilyShortDesc	Slitting Shanks Carrying Triple-Edged Precision Ground Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=2302259
Remarks	W, Tmax, f, Refer to insert data For inserts with W=.158-.256, order tools with -B suffix (deeper pockets). For example: TRIB 50-1.25W-6Z-B For adaptation click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Internal Groove Milling \| Shouldering \| Side Slotting \|
APP1Name	Bottom Shouldering
APP2Name	Internal Groove Milling
APP3Name	Shouldering
APP4Name	Side Slotting
ItemRemark	Minimum bore diameter=1.3"
Tool Type	Double-sided slotting cutters
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	1.0185
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2302259
Connection Code Machine Side (CCMS)	Weldon
Connection Diameter Machine Side (DCONMS)	1"
Cutting Diameter (DC)	1.268"
Cutting Depth Maximum (CDX)	0.189"
Cutting Width Maximum (CWX)	0.256"
Cutting Width Minimum (CWN)	0.158"
Overall Length (OAL)	4.535"
