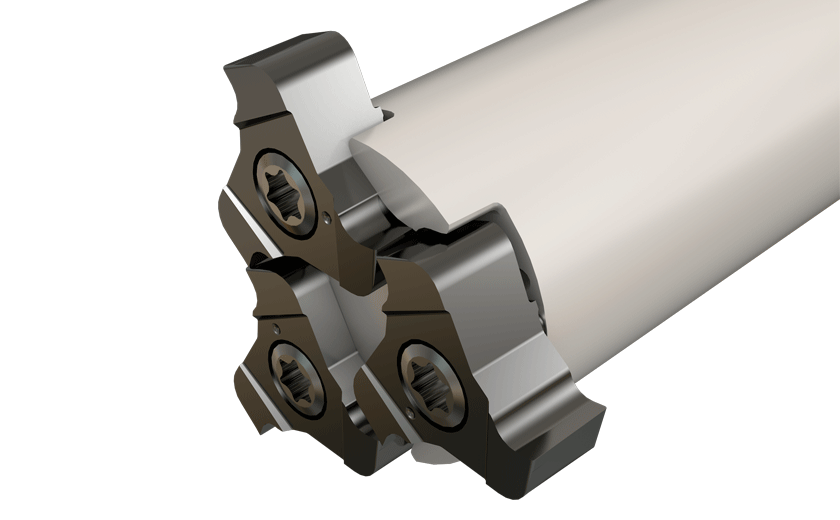

TRIB 32-25W-3Z-Slitting shanks carrying triple-edged precision ground inserts.

Dostępność: duża ilość

Cena brutto: 1 195,83 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1195.83

Cena netto: 972,22 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 328,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2301677

TRIB 32-25W-3Z

Podstawowe informacje
FamilyName	TRIB
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC2301677
ProductName	TRIB 32-25W-3Z
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Slitting shanks carrying triple-edged precision ground inserts.
FamilyShortDesc	Slitting Shanks Carrying Triple-Edged Precision Ground Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=2301677
Remarks	W, Tmax, f, Refer to insert data For inserts with W=4.01-6.50 mm, order tools with -B suffix (deeper pockets). For example: TRIB 50-32W-6Z-B For adaptation click on More Info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Internal Groove Milling \| Shouldering \| Side Slotting \|
APP1Name	Bottom Shouldering
APP2Name	Internal Groove Milling
APP3Name	Shouldering
APP4Name	Side Slotting
ItemRemark	Minimum bore diameter = 33 mm
Tool Type	Double-sided slotting cutters
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.4000
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2301677
Connection Code Machine Side (CCMS)	Weldon
Connection Diameter Machine Side (DCONMS)	25 mm
Cutting Diameter (DC)	32.2 mm
Flute Count (NOF)	3
Functional Length (LF)	80.43 mm
Master Insert Identification (MIID)	TRI 16RK-4.0-0.2
Neck Diameter (DN)	21.7 mm
Overall Length (OAL)	110 mm
Peripheral Effective Cutting Edge Count (ZEFP)	3
Shank Type	Weldon
