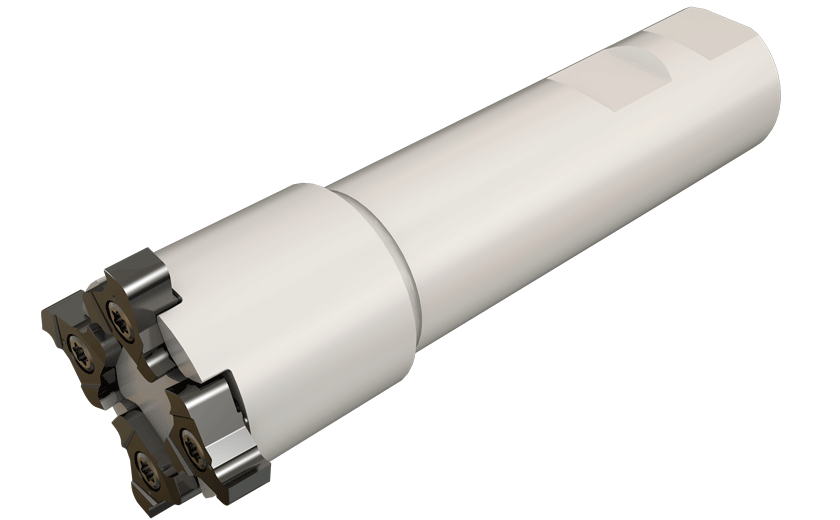

TRIB 50-1.250W 6Z-B-Slitting shanks carrying triple-edged precision ground inserts.

Dostępność: duża ilość

Cena brutto: 1 528,65 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1528.65

Cena netto: 1 242,80 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 698,50 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2302263

TRIB 50-1.250W 6Z-B

Podstawowe informacje
FamilyName	TRIB
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC2302263
ProductName	TRIB 50-1.250W 6Z-B
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Slitting shanks carrying triple-edged precision ground inserts.
FamilyShortDesc	Slitting Shanks Carrying Triple-Edged Precision Ground Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=2302263
Remarks	W, Tmax, f, Refer to insert data For inserts with W=.158-.256, order tools with -B suffix (deeper pockets). For example: TRIB 50-1.25W-6Z-B For adaptation click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Internal Groove Milling \| Shouldering \| Side Slotting \|
APP1Name	Bottom Shouldering
APP2Name	Internal Groove Milling
APP3Name	Shouldering
APP4Name	Side Slotting
ItemRemark
Tool Type	Double-sided slotting cutters
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	1.9577
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2302263
Connection Code Machine Side (CCMS)	Weldon
Connection Diameter Machine Side (DCONMS)	1-1/4"
Cutting Diameter (DC)	1.968"
Cutting Depth Maximum (CDX)	0.189"
Cutting Width Maximum (CWX)	0.256"
Cutting Width Minimum (CWN)	0.158"
Overall Length (OAL)	4.535"
