Uchwyt hydrauliczny C5-NC5030-00035 ID:6898875 Sandvik
Dostępność:
duża ilość
Cena brutto:
20 787,00 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
16 900,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
19 138,80 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6898875
Opis

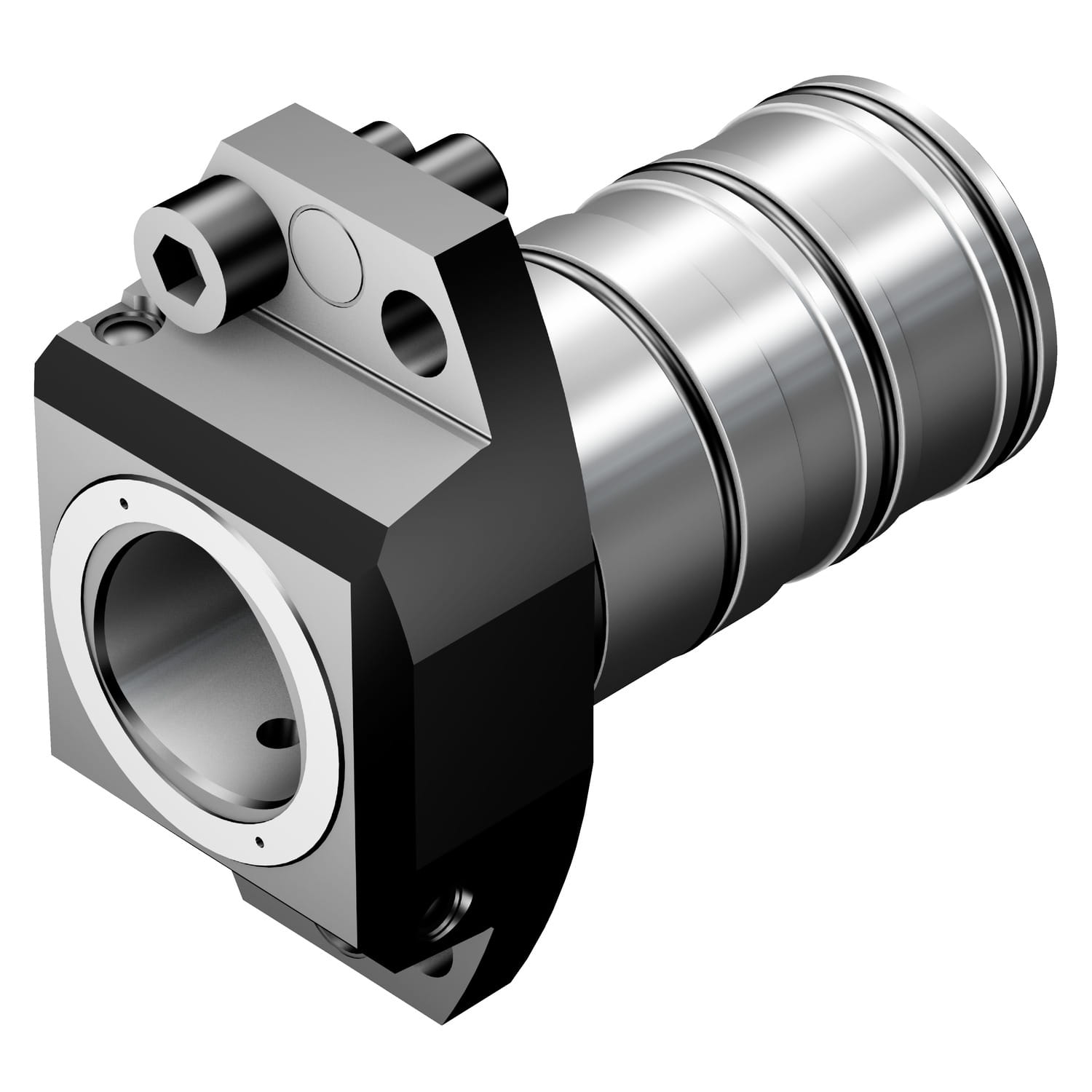

Uchwyt hydrauliczny
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Uchwyt hydrauliczny |
| Rodzina produktów | 1147 |
| Product Subfamily Code (Tsyc) | Cx-NC5030 |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

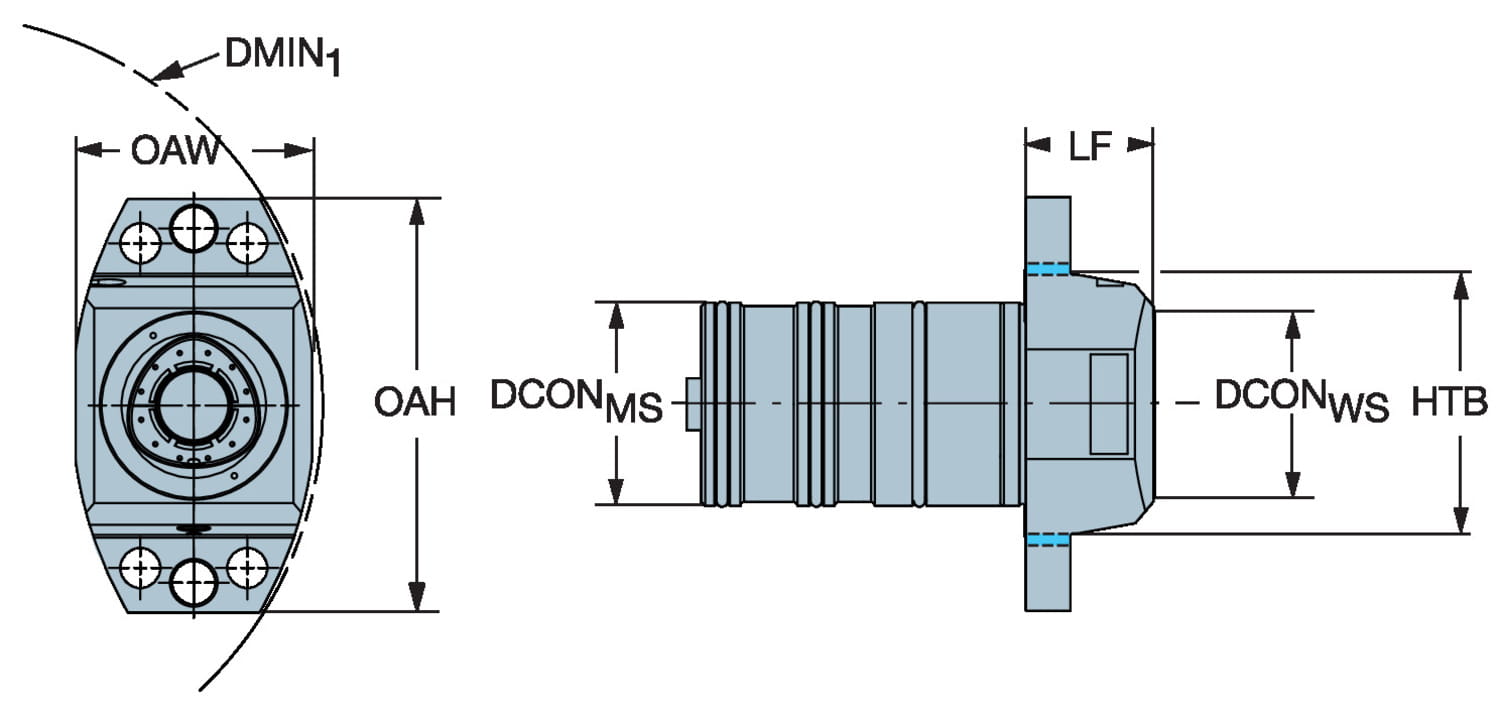

| Wymiary | |
| Dconms Connection Diameter | 2.16535 inch |
| Dconms Connection Diameter | 55 mm |
| Dconws Connection Diameter | 1.9685 inch |
| Dconws Connection Diameter | 50 mm |
| Dfc Functional Diameter | 1.37795 inch |
| Dfc Functional Diameter | 35 mm |
| Dmin1 Minimum Bore Diameter | 11.811 inch |
| Dmin1 Minimum Bore Diameter | 300 mm |
| Lf Functional Length | 1.37795 inch |
| Lf Functional Length | 35 mm |
| Oah Overall Height | 4.40945 inch |
| Oah Overall Height | 112 mm |
| Oaw Overall Width | 2.51969 inch |
| Oaw Overall Width | 64 mm |
| Waga | 4.62971 lb |
| Waga | 2.1 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank without clamping features -metric: 55.0 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (segment clamping) -size C5 |
| Baws Workpiece Side Body Angle | 0 deg |
| Cnsc Coolant Entry Style Code | 4: axial concentric entry on circle |
| Cxsc Coolant Exit Style Code | 2: radial exit |
| Hand Hand | N |
| Inne parametry | |
| Ean Number | 7323220423170 |
