Uchwyt hydrauliczny C6-NC5210-00040 ID:5729188 Sandvik
Dostępność:
duża ilość
Cena brutto:
29 784,45 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
24 215,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
27 416,70 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5729188
Opis
Uchwyt hydrauliczny
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Uchwyt hydrauliczny |
| Rodzina produktów | 1147 |
| Product Subfamily Code (Tsyc) | Cx-NC5210 |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

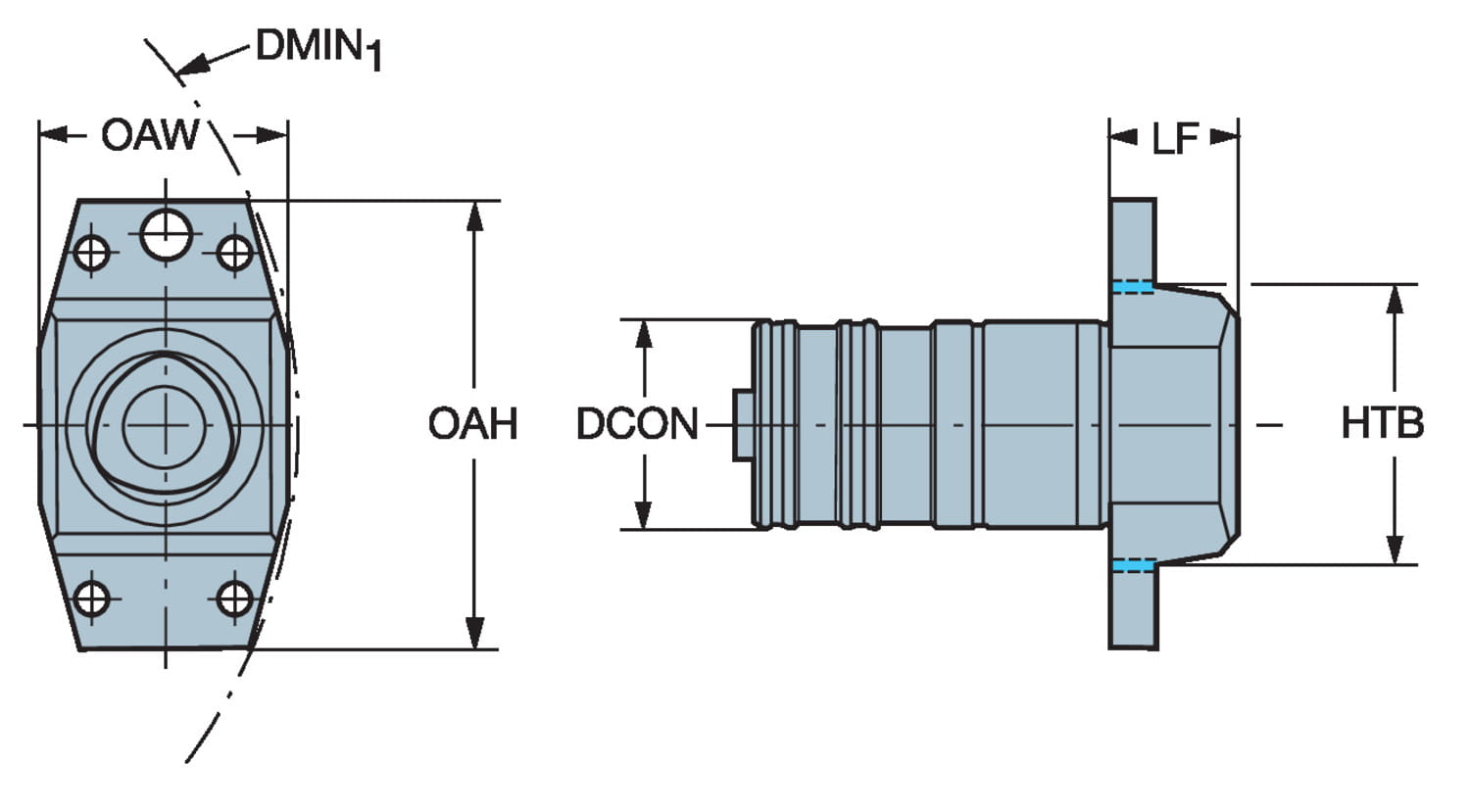

| Wymiary | |
| Dconms Connection Diameter | 2.75591 inch |
| Dconms Connection Diameter | 70 mm |
| Dconws Connection Diameter | 2.48031 inch |
| Dconws Connection Diameter | 63 mm |
| Dfc Functional Diameter | 1.73228 inch |
| Dfc Functional Diameter | 44 mm |
| Dmin1 Minimum Bore Diameter | 15.748 inch |
| Dmin1 Minimum Bore Diameter | 400 mm |
| Lf Functional Length | 1.5748 inch |
| Lf Functional Length | 40 mm |
| Oah Overall Height | 5.62992 inch |
| Oah Overall Height | 143 mm |
| Oaw Overall Width | 3.30709 inch |
| Oaw Overall Width | 84 mm |
| Waga | 10.4389 lb |
| Waga | 4.735 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank without clamping features -metric: 70 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (segment clamping) -size C6 |
| Baws Workpiece Side Body Angle | 0 deg |
| Cnsc Coolant Entry Style Code | 4: axial concentric entry on circle |
| Cxsc Coolant Exit Style Code | 2: radial exit |
| Hand Hand | N |
| Inne parametry | |
| Ean Number | 11523573 |
