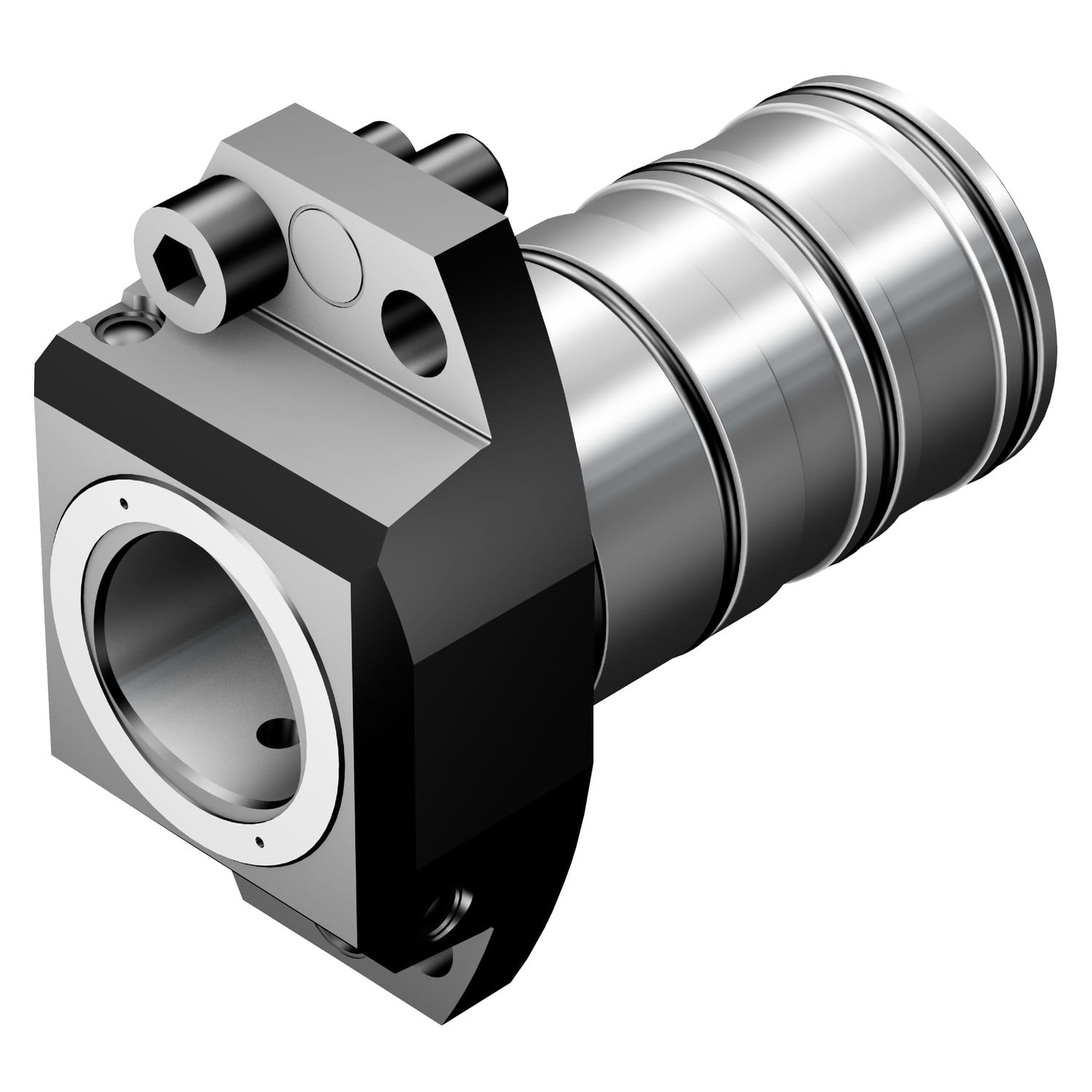

Uchwyt hydrauliczny C6-NC5300-00040 ID:6679807 Sandvik
Dostępność:
duża ilość
Cena brutto:
23 825,10 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
19 370,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
21 930,90 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6679807
Opis
Uchwyt hydrauliczny
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Uchwyt hydrauliczny |
| Rodzina produktów | 2099 |
| Product Subfamily Code (Tsyc) | Cx-NC5300 |
| Rodzina produktów | System Products |
| Country Of Origin | SE |

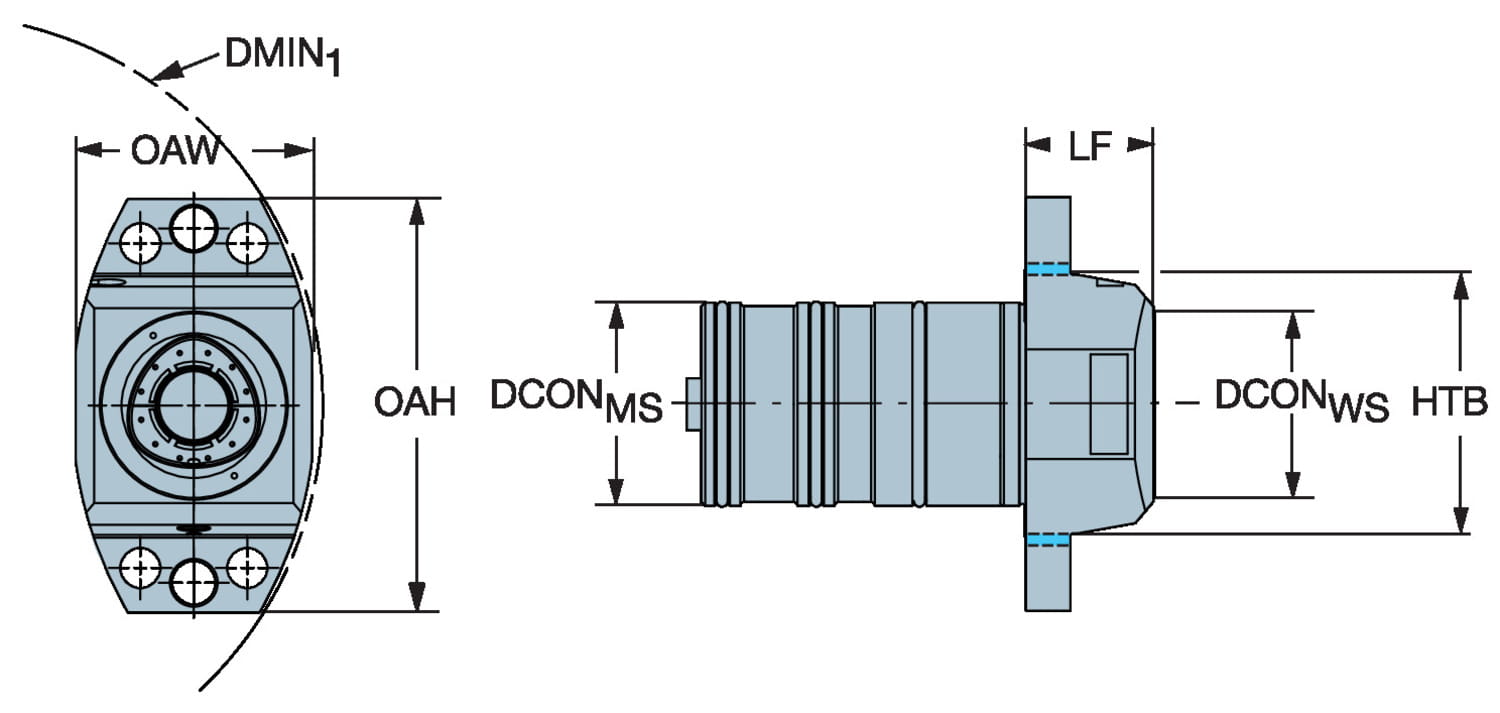

| Wymiary | |
| Dconms Connection Diameter | 2.75591 inch |
| Dconms Connection Diameter | 70 mm |
| Dconws Connection Diameter | 2.48031 inch |
| Dconws Connection Diameter | 63 mm |
| Dfc Functional Diameter | 1.73228 inch |
| Dfc Functional Diameter | 44 mm |
| Dmin1 Minimum Bore Diameter | 11.0236 inch |
| Dmin1 Minimum Bore Diameter | 280 mm |
| Lf Functional Length | 1.5748 inch |
| Lf Functional Length | 40 mm |
| Oah Overall Height | 5.62992 inch |
| Oah Overall Height | 143 mm |
| Oaw Overall Width | 2.99213 inch |
| Oaw Overall Width | 76 mm |
| Waga | 10.5976 lb |
| Waga | 4.807 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | NC5000 machine interface -size C6 143 x 84 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (segment clamping) -size C6 |
| Baws Workpiece Side Body Angle | 0 deg |
| Cnsc Coolant Entry Style Code | 4: axial concentric entry on circle |
| Cxsc Coolant Exit Style Code | 2: radial exit |
| Hand Hand | N |
| Inne parametry | |
| Ean Number | 26679807 |
