Uchwyt hydrauliczny C6-NC5310-00012 ID:7135351 Sandvik
Dostępność:
duża ilość
Cena brutto:
23 825,10 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
19 370,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
21 930,90 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
7135351
Opis

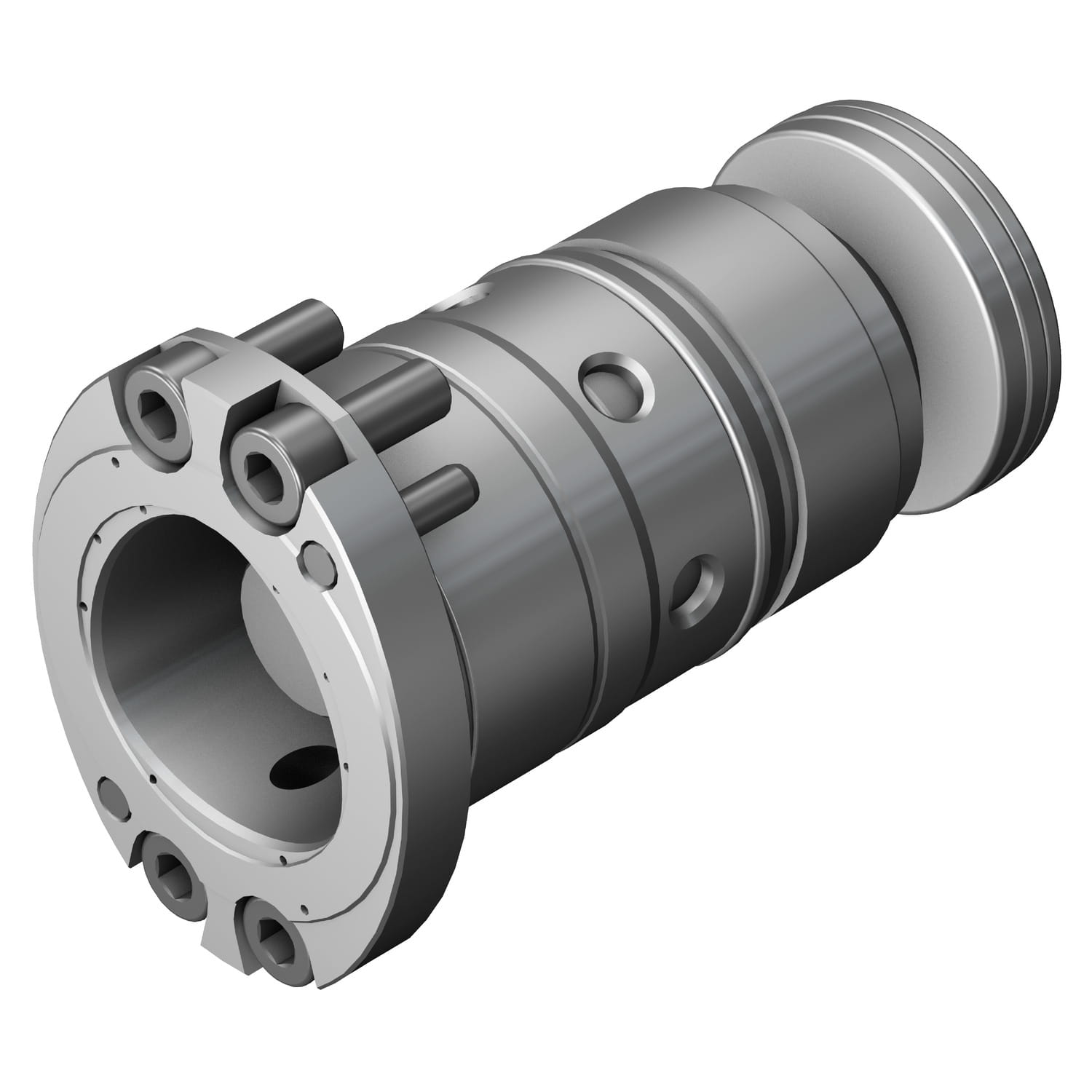

Uchwyt hydrauliczny
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Uchwyt hydrauliczny |
| Rodzina produktów | 2099 |
| Product Subfamily Code (Tsyc) | Cx-NC5310 |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

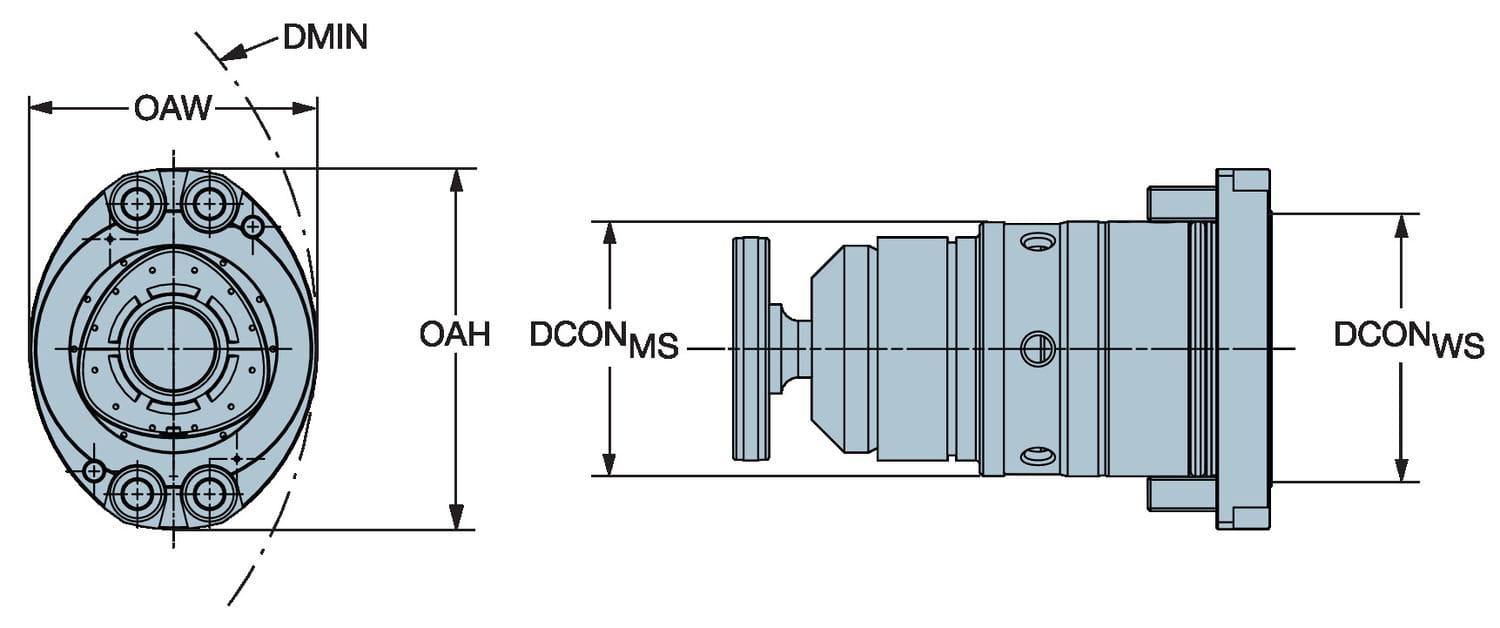

| Wymiary | |
| Dconms Connection Diameter | 2.75591 inch |
| Dconms Connection Diameter | 70 mm |
| Dconws Connection Diameter | 2.48031 inch |
| Dconws Connection Diameter | 63 mm |
| Dfc Functional Diameter | 1.73228 inch |
| Dfc Functional Diameter | 44 mm |
| Lf Functional Length | 1.3189 inch |
| Lf Functional Length | 33.5 mm |
| Oah Overall Height | 3.38583 inch |
| Oah Overall Height | 86 mm |
| Oaw Overall Width | 2.6378 inch |
| Oaw Overall Width | 67 mm |
| Waga | 5.35062 lb |
| Waga | 2.427 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank without clamping features -metric: 70 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (segment clamping) -size C6 |
| Baws Workpiece Side Body Angle | 0 deg |
| Cnsc Coolant Entry Style Code | 2: radial entry |
| Cxsc Coolant Exit Style Code | 2: radial exit |
| Hand Hand | N |
| Inne parametry | |
| Ean Number | 7323221342074 |
