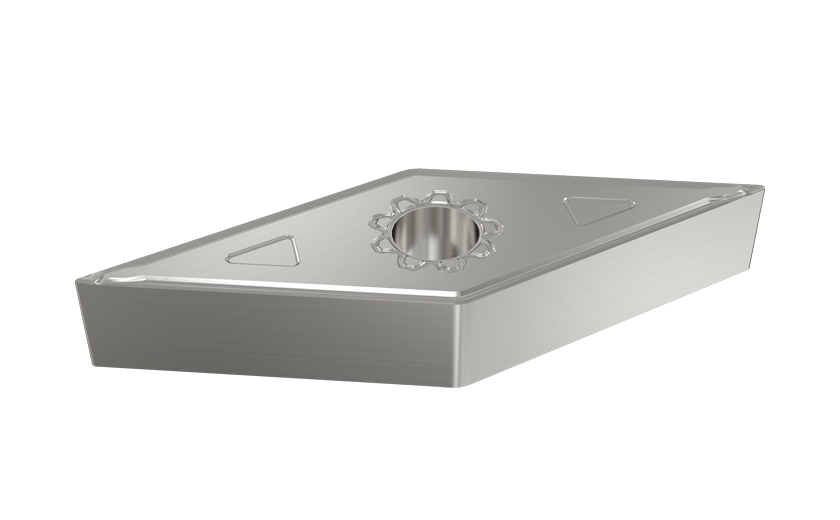

VNMG 160404-F3S IC806-Double-sided 35° rhombic inserts for titanium and heat resistant materials for finishing applications

Dostępność: duża ilość

Cena brutto: 92,11 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

92.11

Cena netto: 74,89 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 102,34 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3340889

VNMG 160404-F3S IC806

Podstawowe informacje
FamilyName	VNMG-F3S
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3340889
ProductName	VNMG 160404-F3S IC806
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Double-sided 35° rhombic inserts for titanium and heat resistant materials for finishing applications
FamilyShortDesc	Double-Sided 35° Rhombic Inserts for Titanium and Heat Resistant Materials for Finishing Applications
Link	https://www.Iscar.com/ecat/e.asp?cat=3340889
Remarks	For dimensions and tolerances, see more info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 35° Diamond 72.5° Approac \| Ext. 35° Diamond 93° Approach \| Int. 35° Diamond 93° Approach \|
APP1Name	Ext. 35° Diamond 72.5° Approac
APP2Name	Ext. 35° Diamond 93° Approach
APP3Name	Int. 35° Diamond 93° Approach
ItemRemark
Coating	AlTiN "SUMO TEC"
Cutting Edge Material	Carbide
Tool Type	Turn Negative Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0129
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3340889
Grade	IC806
Chip Breaker Type	F3S
Clearance Angle Major (AN)	0 Degrees
Corner Radius (RE)	0.4 mm
Cutting Edge Length (L)	12.4 mm
Depth of Cut Maximum (APMX)	1.5 mm
Inscribed Circle Diameter (IC)	7.15 mm
Insert Thickness (S)	3.97 mm
Insert Size	331-F3
Max. Turning Feed (ft(max))	0.3 mm/rev
Min D.O.C.	0.1 mm
Min. Turning Feed (ft(min))	0.05 mm/rev
