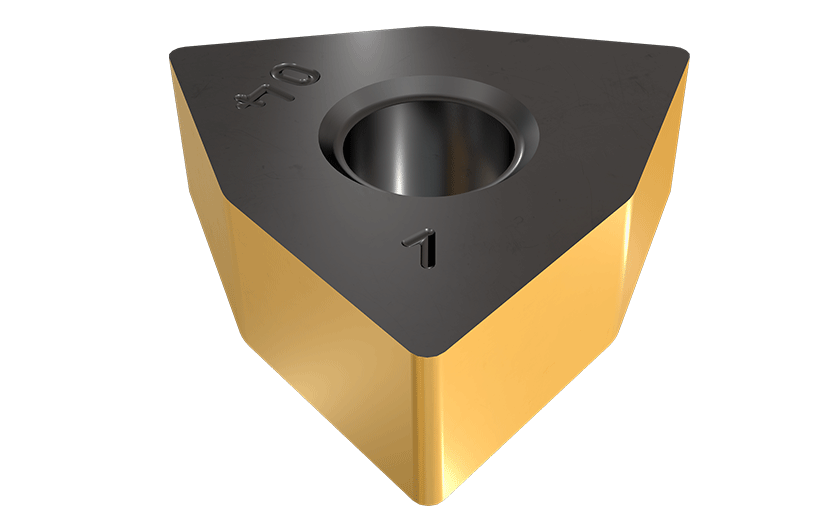

WNMA 060408 IC428-Double-sided trigon inserts, used for short chipping materials such as cast iron.

Dostępność: duża ilość

Cena brutto: 44,51 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

44.51

Cena netto: 36,19 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 49,45 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5599849

WNMA 332 IC428

Podstawowe informacje
FamilyName	WNMA/WNMA-WG
ToolType	Insert
Unit	I
PackSize	10
product_code	ISC5599849
ProductName	WNMA 332 IC428
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Double-sided trigon inserts, used for short chipping materials such as cast iron.
FamilyShortDesc	Double-Sided Trigon Inserts for Short Chipping Materials such as Cast Iron
Link	https://www.Iscar.com/ecat/e.asp?cat=5599849
Remarks	For dimensions and tolerances, see more info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 80° Trigon 95° Approach \| Int. 80° Trigon 95° Approach \|
APP1Name	Ext. 80° Trigon 95° Approach
APP2Name	Int. 80° Trigon 95° Approach
ItemRemark
Coating	TiC+Al2O3
Cutting Edge Material	Carbide
Tool Type	Turn Negative Inserts
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Cast Iron \| Hard Materials \|
Thread Standard
Package Weight	0.0152
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	5599849
Grade	IC428
Chip Breaker Type	A
Clearance Angle Major (AN)	0 Degrees
Corner Radius (RE)	0.0315"
Cutting Edge Length (L)	0.257"
Depth of Cut Maximum (APMX)	0.118"
Inscribed Circle Diameter (IC)	3/8"
Insert Thickness (S)	0.187"
Insert Size	060
Max. Turning Feed (ft(max))	0.0197 "/rev
Min D.O.C.	0.039"
Min. Turning Feed (ft(min))	0.0012 "/rev
