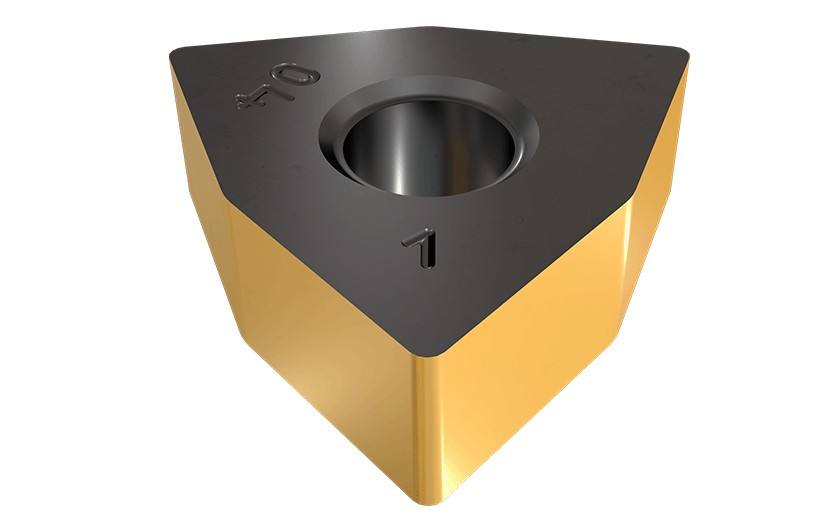

WNMA 080412 IC5010-Double-sided trigon inserts, used for short chipping materials such as cast iron.

Dostępność: duża ilość

Cena brutto: 59,21 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

59.21

Cena netto: 48,14 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 65,79 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5507740

WNMA 080412 IC5010

Podstawowe informacje
FamilyName	WNMA/WNMA-WG
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC5507740
ProductName	WNMA 080412 IC5010
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Double-sided trigon inserts, used for short chipping materials such as cast iron.
FamilyShortDesc	Double-Sided Trigon Inserts for Short Chipping Materials such as Cast Iron
Link	https://www.Iscar.com/ecat/e.asp?cat=5507740
Remarks	For dimensions and tolerances, see more info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 80° Trigon 95° Approach \| Int. 80° Trigon 95° Approach \|
APP1Name	Ext. 80° Trigon 95° Approach
APP2Name	Int. 80° Trigon 95° Approach
ItemRemark
Coating	TiCN+Al2O3+TiN
Cutting Edge Material	Carbide
Tool Type	Turn Negative Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Cast Iron \|
Thread Standard
Package Weight	0.0113
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	5507740
Grade	IC5010
Chip Breaker Type	A
Clearance Angle Major (AN)	0 Degrees
Corner Radius (RE)	1.2 mm
Cutting Edge Length (L)	8.7 mm
Depth of Cut Maximum (APMX)	4 mm
Inscribed Circle Diameter (IC)	12.7 mm
Insert Thickness (S)	4.76 mm
Insert Size	433
Max. Turning Feed (ft(max))	0.55 mm/rev
Min D.O.C.	1.5 mm
Min. Turning Feed (ft(min))	0.03 mm/rev
