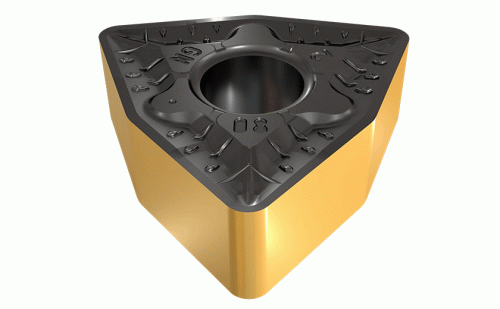

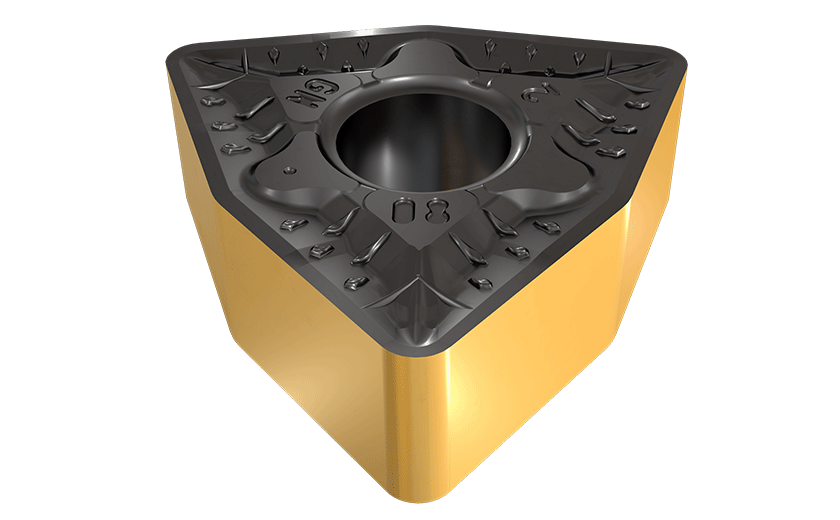

WNMG 06T304-GN IC9250-Double-sided trigon insert, secure cutting edge, for medium- and semi-roughing on steel and cast iron.

Dostępność: duża ilość

Cena brutto: 44,51 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

44.51

Cena netto: 36,19 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 49,45 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5591896

WNMG 3-1-GN IC9250

Podstawowe informacje
FamilyName	WNMG-GN
ToolType	Insert
Unit	I
PackSize	10
product_code	ISC5591896
ProductName	WNMG 3-1-GN IC9250
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Double-sided trigon insert, secure cutting edge, for medium- and semi-roughing on steel and cast iron.
FamilyShortDesc	Double-Sided Trigon Inserts for General Applications
Link	https://www.Iscar.com/ecat/e.asp?cat=5591896
Remarks	For dimensions and tolerances, see more info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 80° Trigon 95° Approach \| Int. 80° Trigon 95° Approach \|
APP1Name	Ext. 80° Trigon 95° Approach
APP2Name	Int. 80° Trigon 95° Approach
ItemRemark
Coating	TiCN+alpha Al2O3+TiN
Cutting Edge Material	Carbide
Tool Type	Turn Negative Inserts
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \|
Thread Standard
Package Weight	0.0123
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	5591896
Grade	IC9250
Chip Breaker Type	GN
Clearance Angle Major (AN)	0 Degrees
Corner Radius (RE)	0.0157"
Cutting Edge Length (L)	0.257"
Depth of Cut Maximum (APMX)	0.138"
Inscribed Circle Diameter (IC)	3/8"
Insert Thickness (S)	0.156"
Insert Size	06T
Max. Turning Feed (ft(max))	0.0157 "/rev
Min D.O.C.	0.039"
Min. Turning Feed (ft(min))	0.0055 "/rev
