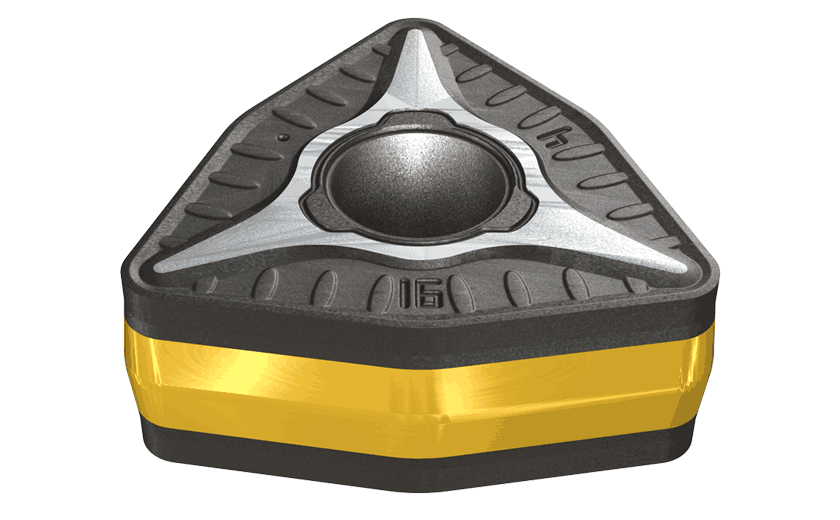

WOMG 100716-T3P-IQ IC8350-Double-sided 6° negative side flank trigon inserts for high feed turning of steel.

Dostępność: duża ilość

Cena brutto: 91,33 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

91.33

Cena netto: 74,25 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 101,48 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5567113

WOMG 100716-T3P-IQ IC8350

Podstawowe informacje
FamilyName	WOMG-10-T3P-IQ
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC5567113
ProductName	WOMG 100716-T3P-IQ IC8350
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Double-sided 6° negative side flank trigon inserts for high feed turning of steel.
FamilyShortDesc	Double-Sided 6° Negative Side Flank Trigon Inserts for High Feed Turning of Steel
Link	https://www.Iscar.com/ecat/e.asp?cat=5567113
Remarks	The specified machining recommendations in the above table are valid only for PWXOR/L-TF-IQ tools. For PWLOR/L-IQ tools: ap= 3-7 mm, ft= 0.3-0.8 mm/rev.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 80° Trigon 95° Approach \| Ext. Trigon 18.5° Approach \|
APP1Name	Ext. 80° Trigon 95° Approach
APP2Name	Ext. Trigon 18.5° Approach
ItemRemark
Coating	TiCN+Al2O3+TiN
Cutting Edge Material	Carbide
Tool Type	Turn Negative Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \|
Thread Standard
Package Weight	0.0272
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	5567113
Grade	IC8350
Chip Breaker Type	T3P
Corner Radius (RE)	1.6 mm
Cutting Edge Length (L)	10.86 mm
Depth of Cut Maximum (APMX)	2.8 mm
Inscribed Circle Diameter (IC)	15.88 mm
Insert Thickness (S)	7.94 mm
Insert Size	554-T3
Max. Turning Feed (ft(max))	3 mm/rev
Min D.O.C.	1 mm
Min. Turning Feed (ft(min))	1.5 mm/rev
