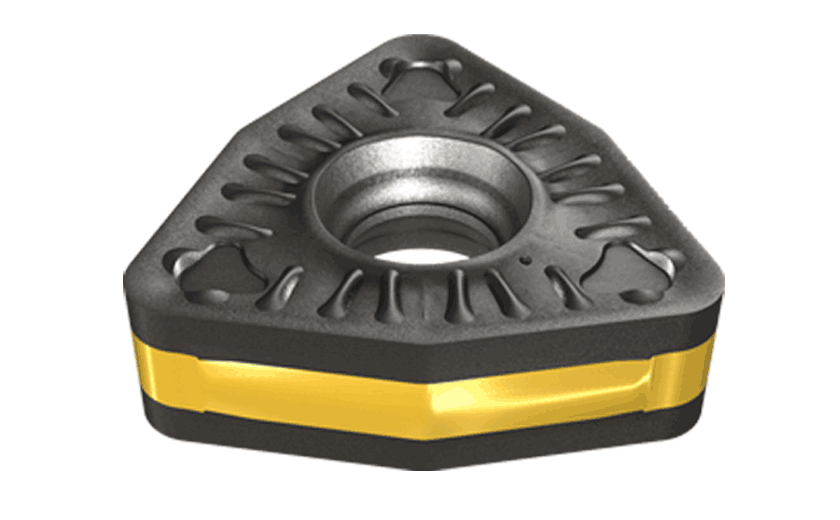

WOMG 130612-R3P-IQ IC8150-Double-sided 7° negative side flank trigon inserts for heavy turning of steel.

Dostępność: duża ilość

Cena brutto: 110,68 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

110.68

Cena netto: 89,98 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 122,98 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5567081

WOMG 130612-R3P-IQ IC8150

Podstawowe informacje
FamilyName	WOMG-13-R3P-IQ
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC5567081
ProductName	WOMG 130612-R3P-IQ IC8150
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Double-sided 7° negative side flank trigon inserts for heavy turning of steel.
FamilyShortDesc	Double-Sided 7° Negative Side Flank Trigon Inserts for Heavy Turning of Steel
Link	https://www.Iscar.com/ecat/e.asp?cat=5567081
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 80° Trigon 95° Approach \|
APP1Name	Ext. 80° Trigon 95° Approach
ItemRemark
Coating	TiCN+Al2O3+TiCN+TiN
Cutting Edge Material	Carbide
Tool Type	Turn Negative Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Cast Iron \|
Thread Standard
Package Weight	0.0313
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	5567081
Grade	IC8150
Corner Radius (RE)	1.2 mm
Cutting Edge Length (L)	13.03 mm
Depth of Cut Maximum (APMX)	8 mm
Inscribed Circle Diameter (IC)	19.05 mm
Insert Thickness (S)	6.35 mm
Insert Size	643-R3
Max. Turning Feed (ft(max))	0.8 mm/rev
Min D.O.C.	3.5 mm
Min. Turning Feed (ft(min))	0.3 mm/rev
