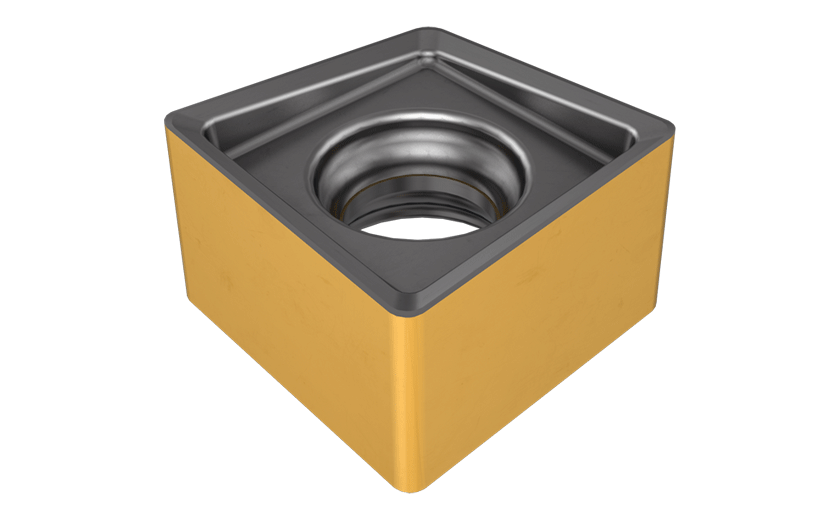

XNMU 060304-PNTN IC808-Square inserts with 4 right- and 4 left-hand cutting edges.

Dostępność: duża ilość

Cena brutto: 63,08 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

63.08

Cena netto: 51,28 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 70,09 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3394962

XNMU 060304-PNTN IC808

Podstawowe informacje
FamilyName	XNMU 06
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3394962
ProductName	XNMU 060304-PNTN IC808
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Square inserts with 4 right- and 4 left-hand cutting edges.
FamilyShortDesc	Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3394962
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Facing \| Shouldering \| Side Slotting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Facing
APP4Name	Shouldering
APP5Name	Side Slotting
APP6Name	Slotting
ItemRemark
Coating	TiAlN+AlTiN+TiN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0028
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3394962
Grade	IC808
Corner Radius (RE)	0.4 mm
Cutting Direction (HAND)	Neutral
Depth of Cut Maximum (APMX)	6 mm
Insert Included Angle (EPSR)	90 Degrees
Insert Thickness (S)	4.4 mm
Maximum Feed per Tooth (fz(max))	0.12 mm/tooth
Minimum Feed per Tooth (fz(min))	0.05 mm/tooth
Number of Cutting Edges	8
