Z CoroTurn® SL na szybkowymienny adapter Coromant Capto® C3-QC-SL100-R ID:7379296 Sandvik
Dostępność:
duża ilość
Cena brutto:
7 951,95 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
6 465,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
7 318,50 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
7379296
Opis

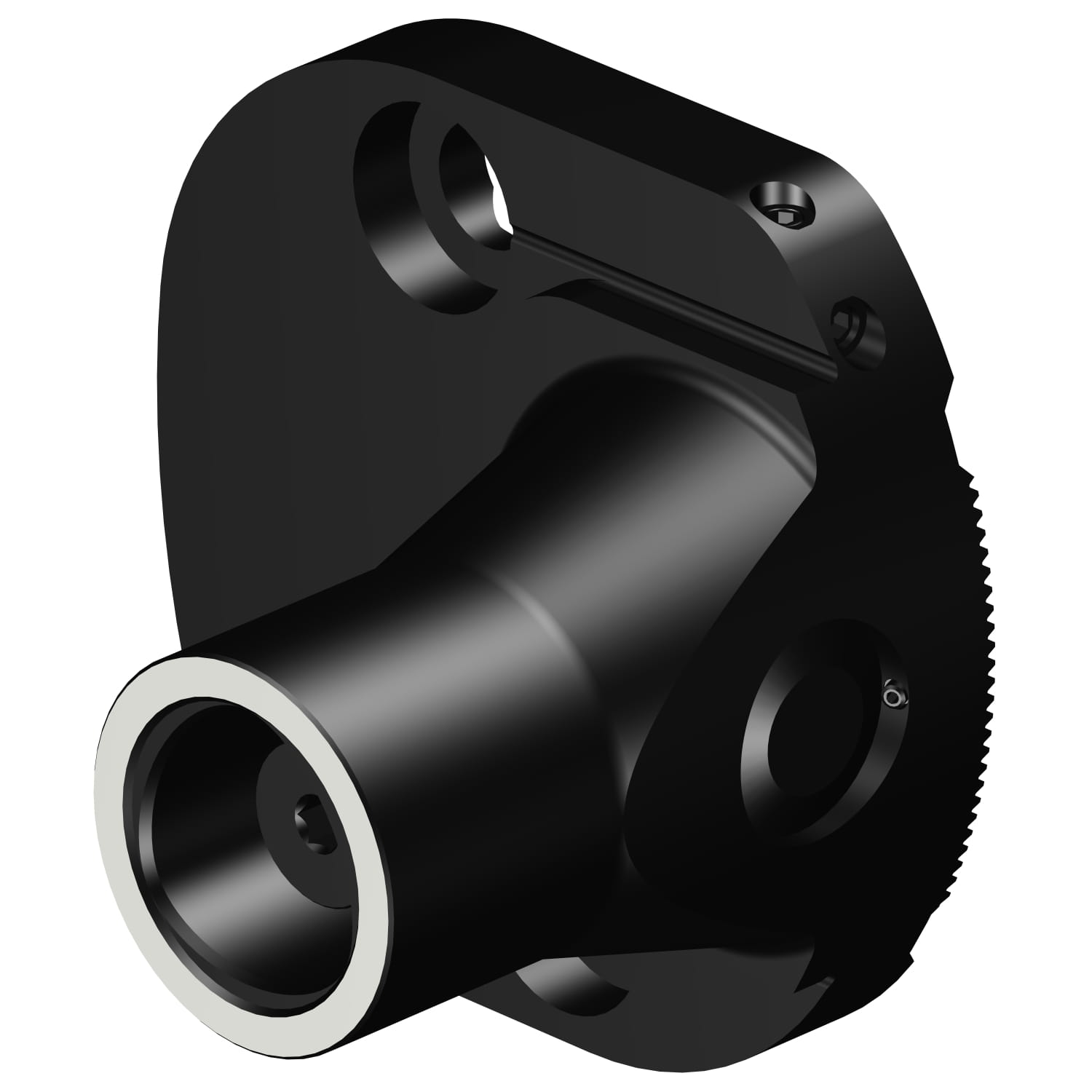

Z CoroTurn® SL na szybkowymienny adapter Coromant Capto®
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Z CoroTurn® SL na szybkowymienny adapter Coromant Capto® |
| Rodzina produktów | 2099 |
| Product Subfamily Code (Tsyc) | Cx-QC-SL |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

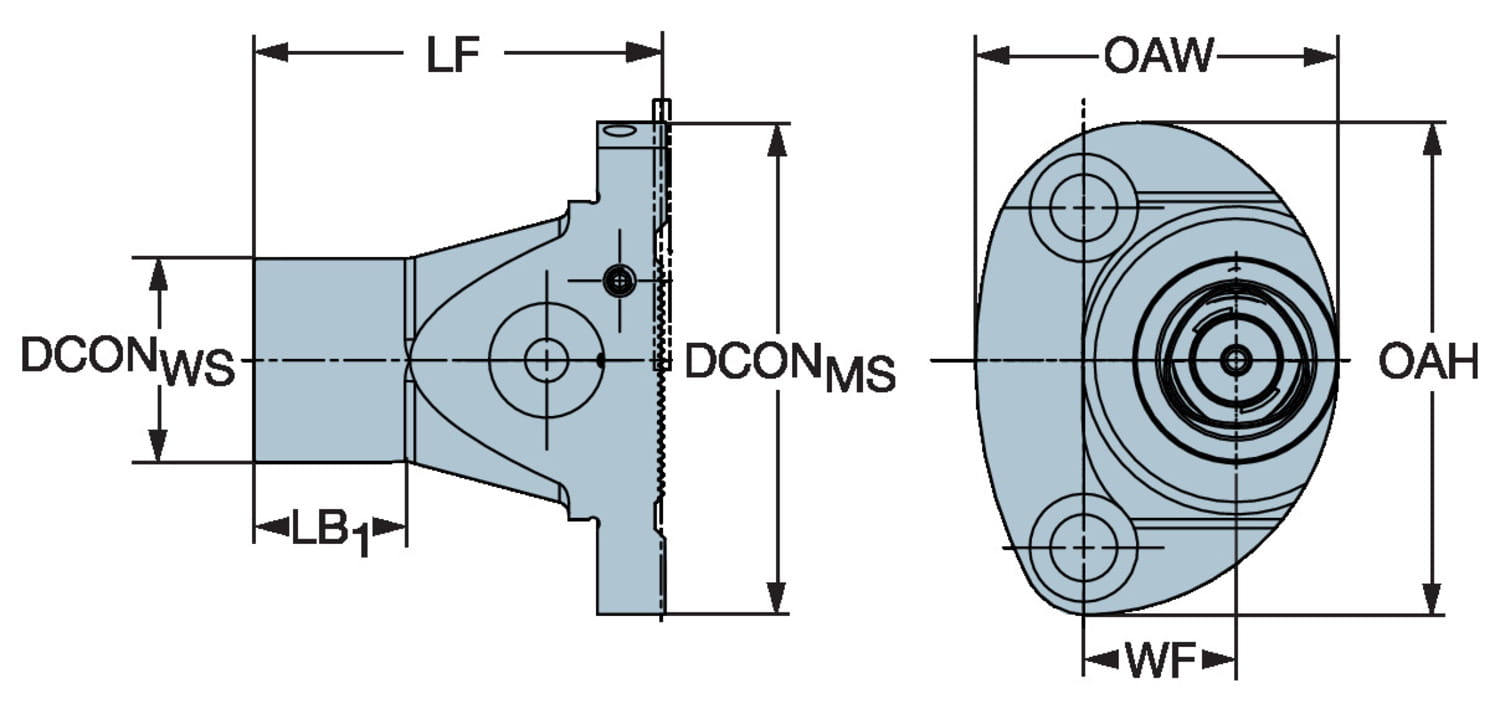

| Wymiary | |
| Dconms Connection Diameter | 3.93701 inch |
| Dconms Connection Diameter | 100 mm |
| Dconws Connection Diameter | 1.25984 inch |
| Dconws Connection Diameter | 32 mm |
| Dfc Functional Diameter | 0.866142 inch |
| Dfc Functional Diameter | 22 mm |
| H Shank Height | 1.47638 inch |
| H Shank Height | 37.5 mm |
| Lf Functional Length | 2.51969 inch |
| Lf Functional Length | 64 mm |
| Oah Overall Height | 3.01181 inch |
| Oah Overall Height | 76.5 mm |
| Oaw Overall Width | 3.14961 inch |
| Oaw Overall Width | 80 mm |
| Waga | 1.57631 lb |
| Waga | 715 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | SL head (quick change bolt pattern) -size 100 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (segment clamping) -size C3 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Ohx Maximum Overhang | 2.51969 inch |
| Ohx Maximum Overhang | 64 mm |
| Inne parametry | |
| Ean Number | 7323222251931 |
