Z Weldon na CoroChuck® 970 970-WE16-11-052 ID:6412687 Sandvik
Dostępność:
duża ilość
Cena brutto:
3 868,35 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
3 145,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
4 551,00 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6412687
Opis

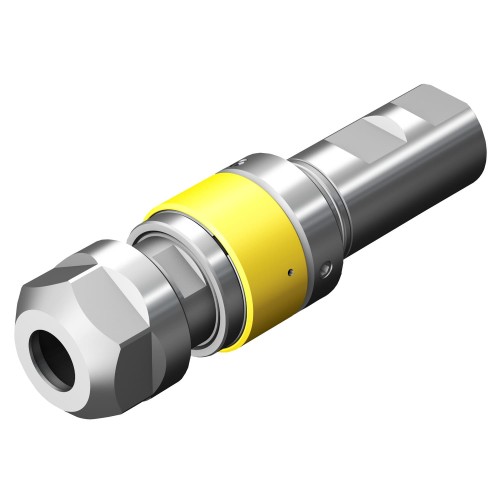

Z Weldon na CoroChuck® 970
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Z Weldon na CoroChuck® 970 |
| Rodzina produktów | 2062 |
| Product Subfamily Code (Tsyc) | 970-Wexx (2) |
| Rodzina produktów | System Products |
| Country Of Origin | US |

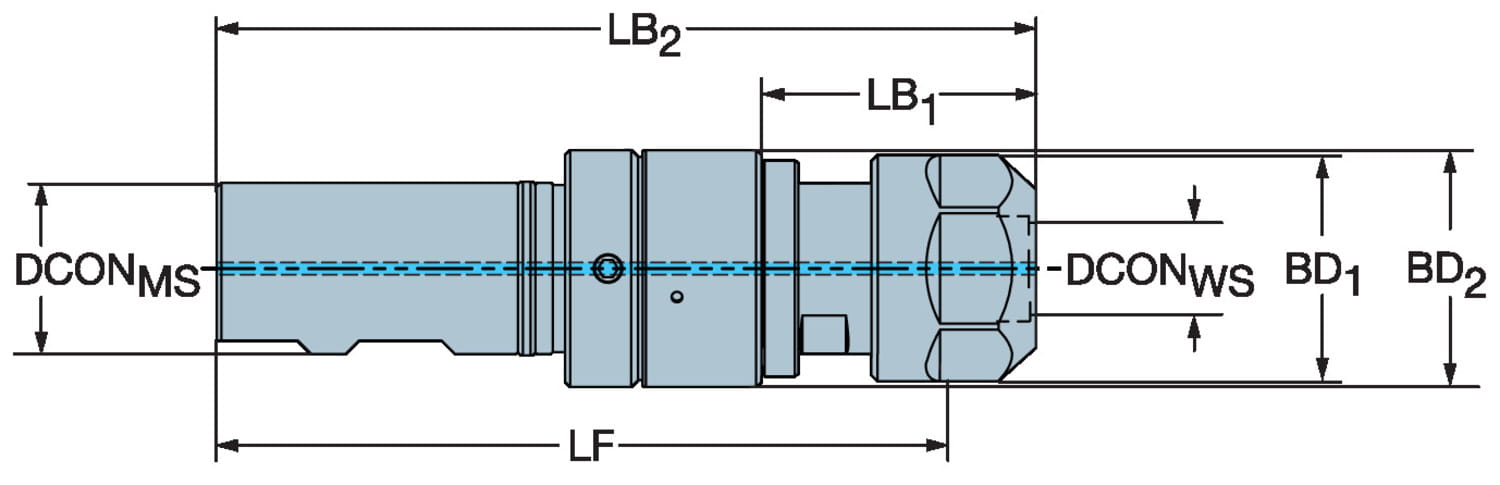

| Wymiary | |
| Dconms Connection Diameter | 0.629921 inch |
| Dconms Connection Diameter | 16 mm |
| Dconws Connection Diameter | 0.444882 inch |
| Dconws Connection Diameter | 11.3 mm |
| Dfc Functional Diameter | 0.433071 inch |
| Dfc Functional Diameter | 11 mm |
| Lf Functional Length | 3.60236 inch |
| Lf Functional Length | 91.5 mm |
| Waga | 0.394628 lb |
| Waga | 179 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Weldon (DIN6535-HB) -metric: 16 |
| Adintws Adaptive Interface Workpiece Direction | ER collet (DIN6499-B) for tapping -ER11 |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dcp Data Chip Provision | no |
| Rpmx Rotational Speed Maximum | 8000 1/min |
| Inne parametry | |
| Ean Number | 26412687 |
