Z Weldon na CoroChuck® 970 970-WE25-40-117 ID:6412693 Sandvik
Dostępność:
duża ilość
Cena brutto:
5 436,60 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
4 420,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
6 396,00 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6412693
Opis

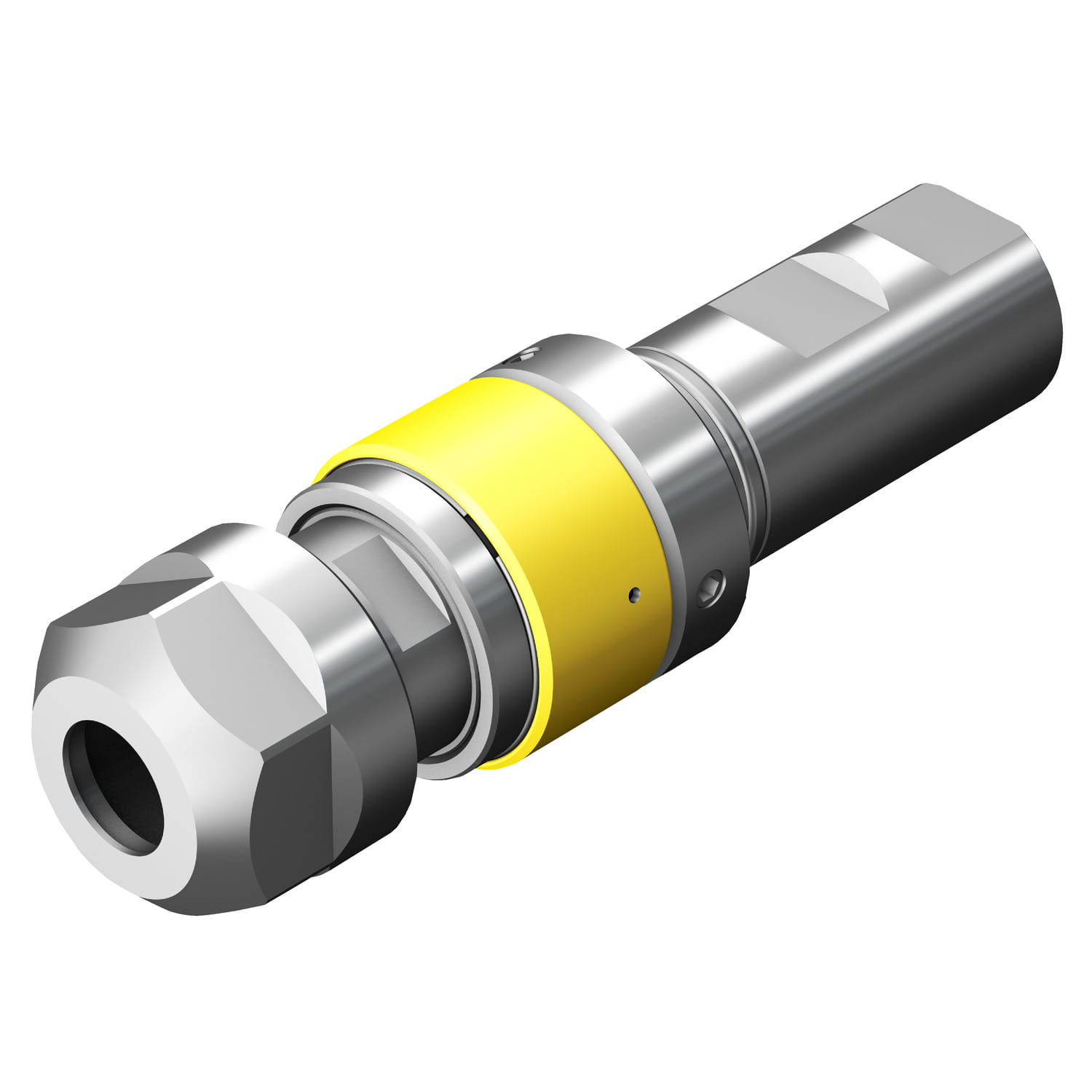

Z Weldon na CoroChuck® 970
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Z Weldon na CoroChuck® 970 |
| Rodzina produktów | 2062 |
| Product Subfamily Code (Tsyc) | 970-Wexx (1) |
| Rodzina produktów | System Products |
| Country Of Origin | US |

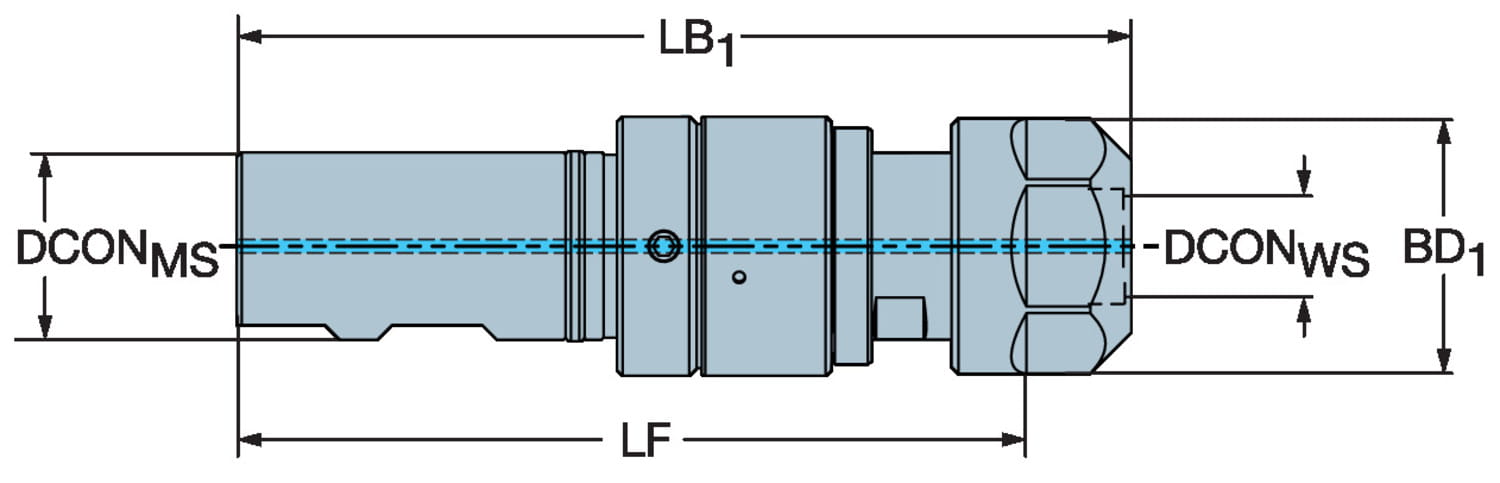

| Wymiary | |
| Dconms Connection Diameter | 0.984252 inch |
| Dconms Connection Diameter | 25 mm |
| Dconws Connection Diameter | 1.6063 inch |
| Dconws Connection Diameter | 40.8 mm |
| Dfc Functional Diameter | 1.5748 inch |
| Dfc Functional Diameter | 40 mm |
| Lf Functional Length | 5.96063 inch |
| Lf Functional Length | 151.4 mm |
| Waga | 4.51066 lb |
| Waga | 2.046 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Weldon (DIN6535-HB) -metric: 25 |
| Adintws Adaptive Interface Workpiece Direction | ER collet (DIN6499-B) for tapping -ER40 |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dcp Data Chip Provision | no |
| Rpmx Rotational Speed Maximum | 8000 1/min |
| Inne parametry | |
| Ean Number | 26412693 |
