Z Weldon na CoroChuck® 970 970-WE25A-20-069 ID:6412695 Sandvik
Dostępność:
duża ilość
Cena brutto:
4 297,01 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
3 493,50 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
5 055,30 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6412695
Opis

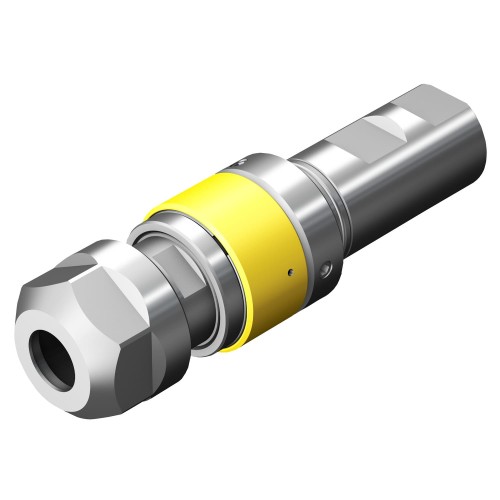

Z Weldon na CoroChuck® 970
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Z Weldon na CoroChuck® 970 |
| Rodzina produktów | 2062 |
| Product Subfamily Code (Tsyc) | 970-WExxA (2) |
| Rodzina produktów | System Products |
| Country Of Origin | US |

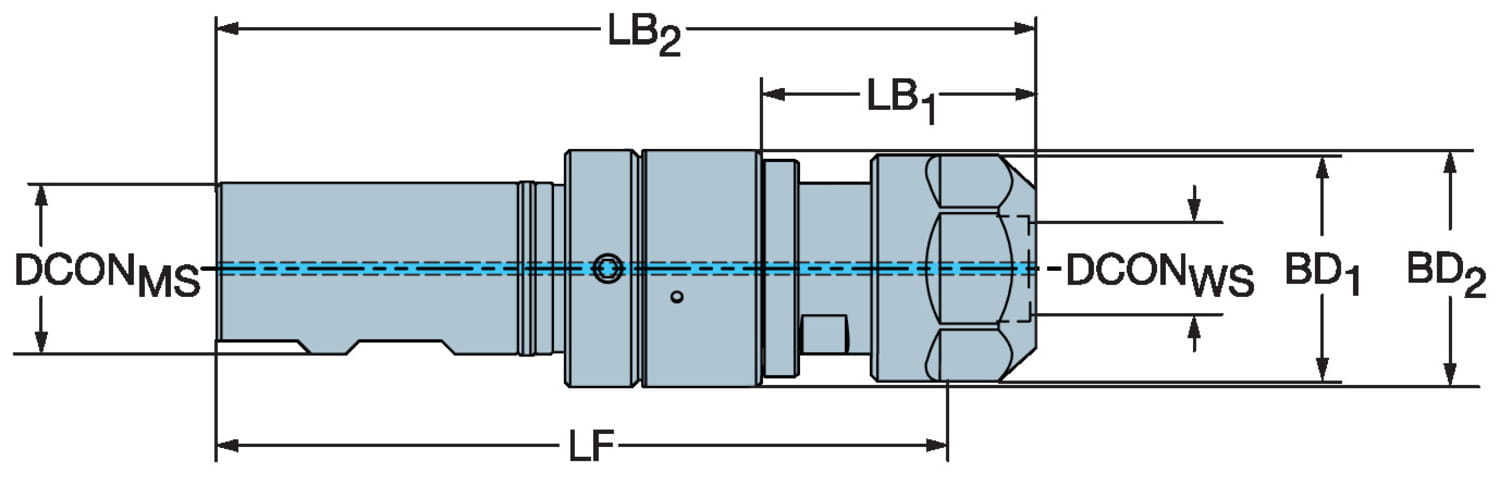

| Wymiary | |
| Dconms Connection Diameter | 1 inch |
| Dconms Connection Diameter | 25.4 mm |
| Dconws Connection Diameter | 0.818898 inch |
| Dconws Connection Diameter | 20.8 mm |
| Dfc Functional Diameter | 0.787402 inch |
| Dfc Functional Diameter | 20 mm |
| Lf Functional Length | 4.19291 inch |
| Lf Functional Length | 106.5 mm |
| Waga | 1.03838 lb |
| Waga | 471 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Weldon (DIN6535-HB) -inch: 1 |
| Adintws Adaptive Interface Workpiece Direction | ER collet (DIN6499-B) for tapping -ER20 |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dcp Data Chip Provision | no |
| Rpmx Rotational Speed Maximum | 8000 1/min |
| Inne parametry | |
| Ean Number | 26412695 |
